CompX National
CompX National C9100 Mailbox Lock, Clockwise (25-Pack)
- SKU:
- 39758-25PK
- MPN:
- C9100 (25-Pack)
Description
CompX National C9100 (25-Pack)
Application
C9100 & C9200 are the only mailbox locks approved by USPS for 4C (CBU) mailboxes. USPS specification “USPS-L-1172C” for USPS-STD-4C mailboxes for exterior pedestal-mounted neighborhood boxes. Keyway dust shutter for lock protection. Clip mounted.
Operation
C9100 operates clockwise. Key removable in locked position only.

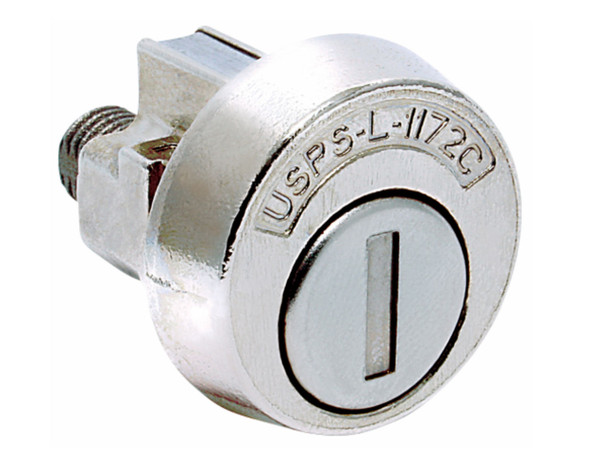

New style USPS postal mailbox lock manufactured by CompX/National. Lock rotation is 90 degrees clockwise. Supplied without locking cam - supplied with parts shown. Each lock supplied with 3 working keys.
Some applications will require the CompX National C7120 postal cam.
Normally, this lock works in applications when the door is hinged on the left. When in the locked position, key removal is vertical at 12:00, key rotates 90 degrees clockwise to unlock position. Key does not remove at unlock position.
Key Blank Depends on the key code:
Standard Part no.
D4300 - Codes: 1000-1999, 3000-3999 ( Compatible ESP NA16, Ilco 1646 )
Reverse
Part no.
D4301 - Codes: 2000-2999, 4000-4999 ( Compatible: ESP NA15, Ilco 1646R )
